838 reviews analysed
1. Hard-to-Find Fastener 014973281267 281267, 1/4-20″, 12 Anchors
Description
We stock a wide variety of fasteners ideal for many applications around the home, farm, business, automotive, and in industry. Most of our fasteners have a light zinc plating over steel giving a more rust resistant finish. We also sell coated and stainless products for additional rust resistance. We stock many grades of fasteners ranging from low carbon steel on up to hardened, heat treated steel. Not all fasteners are applicable for all applications so be certain to test thoroughly and get the opinion of a licensed builder or certified building or structural engineer before relying on these fasteners for any situations where failure would result in damage to property or person.
2. Hurricane Hardware Stainless Steel Phillips Combo Drive Stainless Steel Sidewalk Bolt Kit with Masonry Anchors – 24 Pieces
Feature
- 1/4″-20 x 1-1/2″ Phillips Slotted Combo Drive Sidewalk Bolts 18-8 Stainless Steel – 12 pieces
- 1/4″-20 Machine Screw Masonry Anchors – 12 Pieces
- Commonly used for storm windows and shutters to anchor into brick or masonry wall
- Fixtures can be removed or replaced without sacrificing holding power
- Corrosion resistant stainless steel screws with caulking type anchors designed to provide a quick setting in brick, concrete or stone

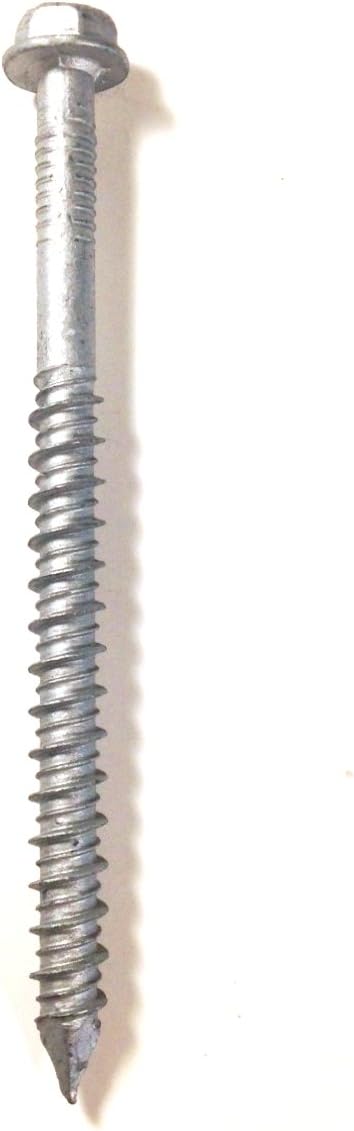

3. Red Head ITW 1/4 X 3-1/4" Hwh 410 ss Buildex Tapcon Stainless Steel Concrete Anchors
Feature
- FREE SHIPPING-All orders $25 or more ship for free
- buy more and save more
- BIT INCLUDED IN EACH BOX-Proper bit equals improved holding values and reduced cost
- FLAT PHILLIPS HEAD–Can be driven with Phillips Screw Driver
- SELF-TAPPING-Taps threads directly into masonry and requires no other anchor
- DIAMOND POINT-Easier to drive the screw to save time
Description
Applications
The anchor is made from 410 Stainless Steel, and is Silver Climaseal Coated. This anchor is designed for use in Concrete, Block, and Brick.
Environment
The anchor is designed for use in a Moist environment.
Head Style
The anchor is a Hex Washer head and is designed to allow the head to sit on top of the surface of the item being attached.
Hole Diameter/Bit Diameter
The anchor requires a 3/16″ hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
Driver Required
A 5/16″ is required for driving the anchor into the base material.
Diameter of Anchor
The diameter of the anchor is 1/4″.
Length Anchor
The length of the anchor is 3-1/4″
Thread Length
The length of the threads on the anchor is 1-3/4″ in length.
Minimum Embedment
The minimum anchor embedment into the concrete is 1″. Therefore, the anchor must be installed so that a minimum of 1″ of the anchor is embedded into the concrete.
Maximum Fixture Thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 2-1/4″. This will ensure that the minimum embedment of 1″ will be met.
Fixture Hole Diameter
The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 1/4″ diameter anchor requires the hole in the fixture to be 5/16″.
Spacing between Anchors
Each anchor must be spaced a minimum distance of 4″ from each other when measured center to center.
Edge Distance
It is very important not to install the anchor any closer than 3″ from an unsupported edge of the concrete.
4. Hurricane Hardware Stainless Steel Phillips Combo Drive Stainless Steel Sidewalk Bolt Kit with Masonry Anchors & Set Tool – 49 Pieces
Feature
- 1/4″-20 x 1-1/2″ Phillips Slotted Combo Drive Sidewalk Bolts 18-8 Stainless Steel – 24 pieces
- 1/4″-20 Machine Screw Masonry Anchors – 24 Pieces
- Includes Setting Tool for Proper Machine Screw Anchor Installation
- Commonly used for storm windows and shutters to anchor into brick or masonry wall
- Fixtures can be removed or replaced without sacrificing holding power
5. CONFAST 1/4" (Inside/Screw 1/4-20 Diameter) Machine Screw Anchor with 1 Setting Tool (100 per Box)
Feature
- SHALLOW EMBEDMENT OPPORTUITIES-Less time required to drill hole
- NATIONAL COARSE THREADS-Bolts and threaded rod is most common type available
- INTERNAL THREADS Easy-removabilityWORKS IN MOST MASONRY MATERIAL-Consistent holding values in wide variety of base materials
- REQUIRES THE USE OF A SETTING TOOL-Setting tool allows for proper positive expansion of the anchor
Description
Applications
The anchor is made from Anchor Body Antimonial Lead Alloy/Cone Zamac Alloy. This anchor is designed for use in Concrete, Block, and Brick.
Environment
The anchor is designed for use in a Moist environment.
Head Style
The anchor is a head
Hole Diameter/Bit Diameter
The anchor requires a 1/2″ hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
Driver Required
A is required for driving the anchor into the base material.
Diameter of Anchor
The diameter of the anchor is 1/4″.
Length Anchor
The length of the anchor is 7/8″
Thread Length
The length of the threads on the anchor is in length.
Minimum Embedment
The minimum anchor embedment into the concrete is 7/8″. Therefore, the anchor must be installed so that a minimum of 7/8″ of the anchor is embedded into the concrete.
Maximum Fixture Thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is . This will ensure that the minimum embedment of 7/8″ will be met.
Fixture Hole Diameter
The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 1/4″ diameter anchor requires the hole in the fixture to be 9/16″.
Spacing between Anchors
Each anchor must be spaced a minimum distance of 5″ from each other when measured center to center.
Edge Distance
It is very important not to install the anchor any closer than 2-1/2″ from an unsupported edge of the concrete.
6. Simpson Strong Tie SPS25344-KT Storm Panel Screw, 305 Stainless Steel, 25 Screws, Wing Nuts and Caps and 1 Hex Driver Bit, 1 Carbide Drill Bit
Description
Product Description
Ideal for attaching storm panels to wood, concrete and masonry
From the Manufacturer
Ideal for attaching storm panels to wood, concrete and masonry
7. PLYLOX Hurricane Window Clips 20 Pack (Carbon Steel, 1/2")
Feature
- PLYLOX window clips securely attach to 1/2″ plywood which the fits into exterior window casings.
- PLYLOX window clips create rigid, safe, temporary attachment of plywood to brick, wood, or stucco
- No nails, screws, bolts or brackets will permanently damage your property.
- PLYLOX window clips holds plywood in window casings as well or better than any other hardware.
- PLYLOX window clips are rugged and will last year after year. If you move, take them with you.
8. WIDGETCO 1/4" x 1" Screw Thread Protectors, White – Works w/Many Hurricane Shutters
Description
1/4 inch x 1 inch White Screw Thread Protectors fit 1/4 inch (1/4-20) screws and bolts. Simply slide over the threaded end of the screw or bolt. Functions as a Thread Protector, Mask (for painting), Insulator, Decorator, Seal or to Color Code. Ideal for Hurricane Shutters.
9. National Hardware N179-812 4005BC Smooth Rod in Zinc plated
10. Orange Screw: The Ultimate Ground Anchor | Small 4 Pack | Made in The USA
Feature
- Lifetime Breakage Guarantee – If you break it, we will replace it!
- Manufactured in the USA from 100% recycled materials
- Lightweight, easy to use and nearly indestructible
- Weight: 1.8oz, Length: 9 1/2”, Diameter: 7/8”
- Uses: Firm Soils, Tent Stakes, Small Dogs, Tarp Tie Downs, Landscaping, Camping
Conclusion
By our suggestions above, we hope that you can found Hurricane Concrete Anchors for you.Please don’t forget to share your experience by comment in this post. Thank you!
