Product Description

The Ingersoll Rand Angle Die Grinder is ideal for weld grinding, deburring, surface prep and polishing. Delivers superior control when trying to get into hard-to-reach places. Side Handle: No, Min. Hose Size (in.): 3/8, Speed (RPM): 20,000, Air Consumption (CFM): 3, CFM at Load: 18, Collet Size (in.): 1/4, Tool Length (in.): 5 15/16, Air Inlet Size (in. NPT): 1/4

Amazon.com

Cut, grind, polish, or tackle other tough jobs with the Ingersoll Rand 3101G heavy-duty air angle die grinder. Part of Ingersoll Rand’s Edge Series, this handheld power tool sports an angled shape that lets you get to those hard-to-reach places. Other features include a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle. A grease fitting allows you to keep the gears properly lubricated. An ergonomic grip makes the tool comfortable to hold and use.

3101G Heavy-Duty Air Angle Die Grinder At a Glance: Cuts, grinds, and polishes in hard-to-reach places Equipped with 1/3-horsepower motor, 1/4-inch collet, and self-locking throttle Has contoured grip for greater comfort while working Backed by a one-year limited warranty

The 3101G heavy-duty air angle die grinder features a contoured grip for greater comfort (click to enlarge).

Tackles Tough Tasks in Tight Spaces
Made by Ingersoll Rand, this compressed-air-powered, hand-held, rotary power tool is great for tasks such as grinding, porting, polishing, deburring, and weld breaking. The tool’s angled shape and superior control and maneuverability make it especially well-suited for confined and hard-to-reach places. With 20,000 RPM, it’s powerful enough to tackle those difficult jobs.

Lightweight Yet Sturdy Construction
The Ingersoll Rand 3101G heavy-duty air angle die grinder features a ball-bearing construction and, like all of the company’s Edge Series Impactools, is exceptionally rugged, compact, and lightweight. It comes equipped with a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking lever throttle. Near the top of the tool is a grease fitting hole into which you can easily and conveniently feed lubricants. Lubricating the angle gears on a regular basis can help increase their lifespan.

Award-Winning Ergonomic Design
The Ingersoll Rand 3101G heavy-duty air angle die grinder features an award-winning ergonomic design that delivers exceptional torque accuracy along with increased productivity and safety. A contoured grip offers greater comfort while you’re working. The tool measures 6.8 inches long and weighs 1.3 pounds.

About Ingersoll-Rand
Ingersoll Rand is a global, diversified firm providing products, services, and solutions to enhance the quality and comfort of air in homes and buildings, transport and protect food and perishables, secure homes and commercial properties, and increase industrial productivity and efficiency. Driven by a 100-year-old tradition of technological innovation, Ingersoll Rand enables its customers to create progress and a positive impact in their world.

What’s in the Box
Ingersoll Rand 3101G heavy-duty air angle die grinder and wrench kit.

The 3101G heavy-duty air angle die grinder is great for grinding, polishing, deburring, and more (click to enlarge).

See all Product description

Product Description

Die grinder features a composite housing for durability and powerful 1/4 HP motor. Specs: RPM: 27,000, Air Inlet Size : 1/4", Min. Hose Size: 3/8", Collet Size (in.): 1/4, Side Handle: No: Durable composite housing Ball bearing construction 1/4 HP motor Self-locking throttle.

Amazon.com

Cut, grind, polish, or tackle other tough jobs with the Ingersoll Rand 3107G heavy-duty air die grinder. Part of Ingersoll Rand’s Edge series, this handheld power tool sports a ball-bearing construction that’s sturdy yet lightweight. Features include a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle. An ergonomic grip makes the tool comfortable to hold and use and provides exceptional torque accuracy.

3107G Heavy-Duty Air Die Grinder At a Glance: Ball-bearing construction that’s rugged yet lightweight Equipped with 1/3-horsepower motor, 1/4-inch collet, and self-locking throttle Has ergonomic grip for greater comfort and torque accuracy Backed by a one-year limited warranty

An ergonomic grip offers greater comfort while you’re working.

Lightweight Yet Sturdy Construction
The Ingersoll Rand 3107G heavy-duty air die grinder has a ball-bearing construction and, like all of the company’s Edge Series Impactools, is exceptionally rugged, compact, and lightweight. It comes equipped with a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle.

Award-Winning Ergonomic Design
The Ingersoll Rand 3107G heavy-duty air die grinder features an award-winning ergonomic design that delivers exceptional torque accuracy along with increased productivity and safety. The tool’s contoured grip offers greater comfort while you’re working. This product measures 6.6 inches long and weighs 1 pound.

About Ingersoll-Rand
Ingersoll Rand is a global, diversified firm providing products, services, and solutions to enhance the quality and comfort of air in homes and buildings, transport and protect food and perishables, secure homes and commercial properties, and increase industrial productivity and efficiency. Driven by a 100-year-old tradition of technological innovation, Ingersoll Rand enables its customers to create progress and a positive impact in their world.

What’s in the Box
Ingersoll Rand 3107G heavy-duty air die grinder.

The 3107G heavy-duty air die grinder is great for cutting, grinding, polishing, and more (click to enlarge).

See all Product description

Warm Tips: Air sander

✔Before use, you should check the grinding wheel to ensure there is no flaw on the protective cover.

✔When orbital random sander need to replace the wheel, you should close the valve first, and then replace the wheel appropriately, make sure not be too tight or too loose.

✔After project work, close the pipe valve first, then the grinder, pressure relief, and last remove the grinder switch.

✔Grinding wheel should be kept dry and can not be stored in humid or open-air place.(NOTE: our sander can not be used for wet grinding, if needed, please purchase the specialized water mill tools. )

Specifications: Pneumatic orbit polisher

☛Item Material: Aluminum Alloy + Plastic

☛Certification: CE

☛Sanding Pad: 6 – Inch (150mm)

☛Free Speed: 10000RPM

☛Max Pressure: 90PSI3.28

☛Dimentions: ￠ 5.9 * H3.9inch (￠ 150*H100mm)

☛Air Consumption: 350L / MIN

☛Pendulum Diameter: 1/4″

☛Outlet Hose Diameter: ￠ 0.78inch

☛Working Pressure: 6.3bar

☛Hose Length: 3.28ft (1m)

☛Noise Value: 100db

☛Item Weight: 2.6 Pound

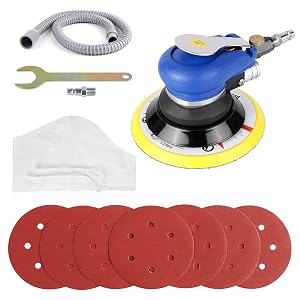

Package Included:

◆1 x Mini Dual Action Air Sander

◆1 x Trachea Quick Connector

◆1 x Wrench

◆7 x 240 # Sandpaper

◆1 x Hose

◆1 x Dust Bag

◆1 x User Manual

Product Description

Long-lasting, economical, and ideal for general-purpose grinding, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere.

Amazon.com

Long lasting, economical, and ideal for general-purpose grinding, the Ingersoll Rand 301B Air Angle Die Grinder delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere. The 301B has a 0.25 hp motor that delivers a free speed of 21,000 rpm.

Great for grinding, breaking sharp edges, deburring, porting, and polishing (view larger).

The 301B’s strong aluminum housing withstands tough operating conditions, and its durable ball-bearing construction improves balance, reduces vibration, and ensures a longer life. The small, lightweight design provides easy operation, and greater access to tight spots, while an integral safety-lock throttle lever prevents accidental start-up. It also features a front exhaust to help you keep work surfaces clean.

What’s in the Box

301B Air Angle Die Grinder; 1/4-inch and 6 mm collets; two wrenches; operating instructions

About Ingersoll Rand

Ingersoll Rand designs, builds, and delivers an unrivaled assortment of hard-working products and solutions. Ingersoll Rand is a multi-billion dollar global company that has built a reputation for keeping its customers up and running for over a century. From our complete compressed air systems, to our tools, pumps, material handling systems and comprehensive services, Ingersoll Rand offers the depth of knowledge, expertise, and experience to provide the best solution to meet your needs.

Specifications

Power	Free Speed RPM	Output Collet Size	Average Air Consumption	Air Consumption @ Load	Sound Pressure / Power
0.25 hp (0.19 kW)	21,000	1/4-inch, 6mm	6 cfm (170 L/minute)	24 cfm (680 L/minute)	92/105 dBA

Air Inlet NPTF In	Minimum Hose Size	Air Pressure	Exhaust Direction	Product Length	Product Weight
1/4-inch	3/8-inch (10mm)	90 psi (6.2 bar)	Front	5.27 inches	1.02 pounds

301B Air Angle Die Grinder

At a Glance

• Powerful motor delivers 0.25 HP (0.19 kW) and 21,000 rpm free speed
• Durable ball-bearing construction
• Strong aluminum housing
• Safety-lock throttle lever prevents accidental start up
• Front exhaust

Product Description

Remove and install threaded fasteners with ease using the 47214 air ratchet wrench from Central Pneumatics. Part of the company’s line of Impactools power tools, the wrench comes equipped with a 3/8-inch drive and a reinforced, heat-treated ratchet head for greater durability. Its powerful motor yields 50 foot pounds of torque and 130 RPM of free speed to tackle tough jobs. An ergonomic grip makes the wrench comfortable to use.

Amazon.com

Remove and install threaded fasteners with ease using the 170G air ratchet wrench from Ingersoll Rand. Part of the company’s line of Impactools power tools, the wrench comes equipped with a 3/8-inch drive and a reinforced, heat-treated ratchet head for greater durability. Its powerful motor yields 55 foot pounds of torque and 170 RPM of free speed to tackle tough jobs. An ergonomic grip makes the wrench comfortable to use.

170G Air Ratchet Wrench At a Glance: Features 3/8-inch drive and heat-treated ratchet head Yields 55 foot pounds of torque and 170 RPM of free speed Ergonomic design makes wrench comfortable to use Backed by a one-year limited warranty

This tool’s TwinPawl Plus ratchet head has been heat-treated for a longer life (click to enlarge).

An ergonomic grip offers greater comfort while you’re working (click to enlarge).

Lightweight Yet Sturdy Construction
Like all of Ingersoll Rand’s Edge Series Impactools, the Ingersoll Rand 170G air ratchet wrench is exceptionally rugged, compact, and lightweight. The wrench sports a 3/8-inch drive and an exclusive TwinPawl Plus ratchet head that’s been heat-treated for a longer life. The tool’s powerful motor delivers 55 foot pounds of torque and 170 RPM of free speed for optimal performance.

Award-Winning Ergonomic Design
The Ingersoll Rand 170G air ratchet wrench features an award-winning ergonomic design that delivers exceptional torque accuracy along with increased productivity and safety. The tool’s contoured grip offers greater comfort while you’re working.

About Ingersoll-Rand
Ingersoll Rand is a global, diversified firm providing products, services, and solutions to enhance the quality and comfort of air in homes and buildings, transport and protect food and perishables, secure homes and commercial properties, and increase industrial productivity and efficiency. Driven by a 100-year-old tradition of technological innovation, Ingersoll Rand enables its customers to create progress and a positive impact in their world.

What’s in the Box
Ingersoll Rand 170G air ratchet wrench.

See all Product description

Product description

Low vibration Dependable performance Balanced ball bearing construction Adjustable built-in regulator for positive speed control

Amazon.com

Part of the industry’s most complete line of air finishing tools, the Ingersoll Rand 311A Heavy-Duty Six-Inch Dual-Action Quiet Air Sander combines all the latest advances for excellent control and brilliant surfaces. This easy-to-handle tool’s every detail is designed to make your work faster and easier, so you can get more done without sacrificing comfort or quality.

Dual-Action Sander Creates Swirl-Free Finishes
With the 311A, you get the power and precision you need to complete sophisticated work. Compact, portable, and designed for long life, this dual-action sander creates swirl-free finishes, making it ideal for feather edging, metal preparation, and finish work on body filler.

Balanced, Quiet Operation for All-Day Comfort
Complete with a 6-inch-diameter pad, the 311A is packed with features that help make work more pleasant and efficient. First, a lever throttle takes pressure off your palm, resulting in less hand and wrist fatigue.

Additionally, a built-in silencer muffles noise as you work, while balanced ball-bearing construction ensures improved handling and control, as well as longer life. And at just four pounds, the 311A won’t weigh you down, even during all-day jobs.

Low Vibration and Optimum Precision
To keep noise at a minimum, this sander provides low vibration and quiet performance. For added convenience, there’s an adjustable built-in regulator that delivers positive speed control–12,000 rpm maximum free speed, 17 cfm air consumption at free speed–for optimum precision.

The 311A is backed by a one-year warranty.

Ingersoll Rand Air Tools: Reliability and Power
Whether you’re working in the shop, at the garage, or on a heavy-duty jobsite, you can depend on Ingersoll Rand air tools for quality and performance. Ingersoll Rand tools are powerful, durable, and easy to use, reducing downtown and improving productivity.

For more than 100 years, the company’s advanced engineering, manufacturing, and service models have set a standard of excellence. Trust Ingersoll Rand to help you complete your work faster and easier than ever before.

What’s in the Box
Ingersoll Rand 311A Heavy-Duty Six-Inch Dual-Action Quiet Air Sander and manual.

See all Product description

The DEWALT DWMT70776L 3/8″ Square Drive Air Ratchet features an aluminum body design with a closed head, along with a 1/4″ air inlet. It offers up to 65ft-lbs of torque to help free stubborn bolts, and speed of up to 160 RPM. This ratchet has an ergonomic handle with a rubber cushion grip, along with a touch control trigger that lets users apply the needed amount of power.

New version, high strength, wear resistant, long service life

Product Description:

Air Random Orbital Sander
It is made of a composite plastic body and is pretty light weight.
It is best used for all kinds of metal products, polishing processing of residual after welding slag, weld and rust.
Make sure you use the lubricating oil that comes with this for best performance.

Specifications:
Air Inlet:1/4″
Air Pressure: 90 PSI
hook and loop sanding pad:5″
Average air consumption: 10.5 CFM
Free speed: 12,000 RPM

Features:
Constructed with heat treated steel components for long life
Comfort Platform provides additional hand and wrist support.
Great sander, light weight, inexpensive, works great

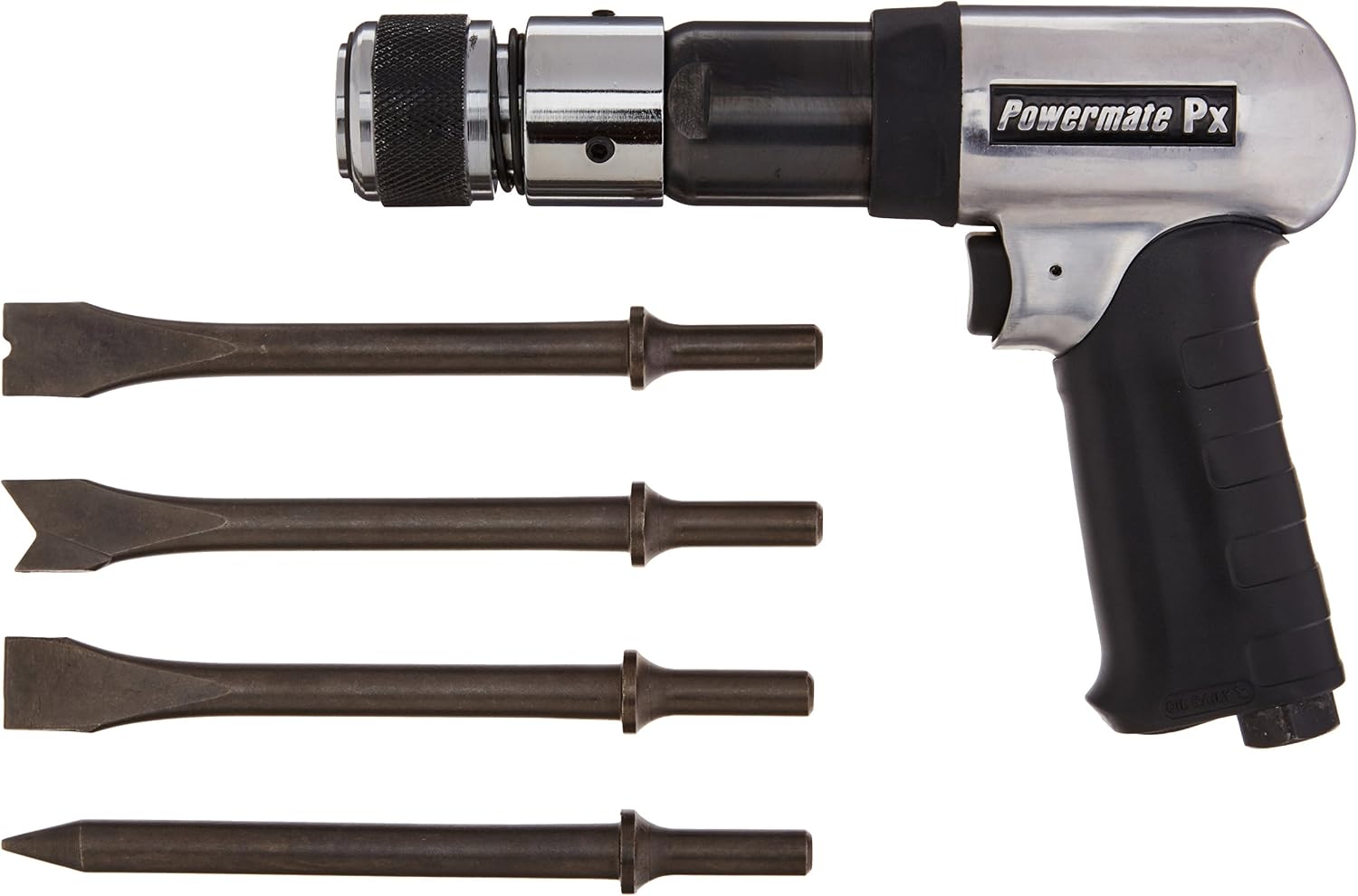

Powermate Px heavy duty air hammer is perfect for cutting, chipping, piercing, and scraping. The steel sleeve inside Cylinder absorbs direct shock increasing wear resistance of tool. The double threaded hammer Cylinder allows a more solid impact.
